240W China UFO LED Highbay Light With CE, RoHs, Meanwell UL Driver, 5 Years High Quality Warranty, Warehouse And Stadium Lighting

Luxsky Lighting Co.,UFO Highbay LED lighting LS-03-HB-UFO-240W, LED high power 240W, AC 85-277V Input Voltage,big brand Philips 3030 LEDs, Meanwell 250W driver, They are mostly used in the high places of bastball holls, stadium, train stations; airplane holls, big factory warehouse, factories workshork and warehouse, seaship warehouses and so on.

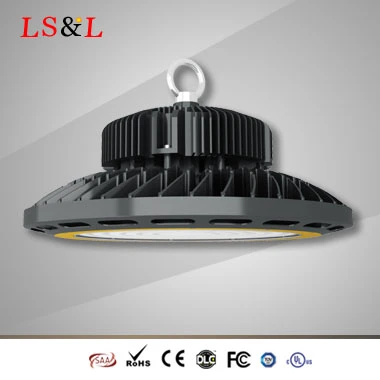

    High Power & High Lumens LED UFO 240W Highbay Lights


    Luxsky Lighting Co.,UFO Highbay LED lighting LS-03-HB-UFO-240W, LED high power 240W, AC 85-277V Input Voltage,big brand Philips 3030 LEDs, Meanwell 250W driver, They are mostly used in the high places of basketball halls, stadium, train stations; airplane holls, big factory warehouse, factories workshork and warehouse, seaship warehouses and so on.


    LED UFO lights 240W
    240W highpower UFO lights
    highbay LED 240W UFO


    v  LED UFO 240W Highbay Light Application:

     LS-03-HB-UFO-240W high quality LED highbay lights are used  in the places:

     Bastball Gymnasium, stadium, bus/train/airplane stations; big warehouse, factories workshork and warehouse.



                    Basketball Gymnasium

    UFO highbay  240W light    UFO Basketball holl lighting.png



    v  240W LED UFO Highbay's Specification:

    Products Brand: LUXSKY LIGHTING

    Product Name  : 240W LED UFO Highbay light

    Color Temperature: 4000-4500K/5000-5500K/6000-6500K

    Light Power   : 240W

    Color Rendering Index: >80Ra

    InputVoltage  : AC85-277V Input, 50Hz/60Hz

    LED Working voltage : DC30-40V

    Quantity of LEDs: 288pcs

    LED Brand:   Philips 3030 SMD

    Lighting Efficency: 120-130lm/W

    LED luminous  : >28800lms

    Light's Efficiency: >91%

    Illumiance Uniformity: >0.85

    Power Factor: >0.90

    THD : <20%

    Driver Brands: Meanwell/Philips/Huatian


    LED lifetime: 50,000 hours

    LED UFO Shell: Aluminum Fin Radiatior 6063

    Reflector Beamangle: 90° or 120°

    Installation: hook/suspended/ceiling mounted

    LED working Temperature: -20°C to +50°C

    Storage Temperature:-20°C to +60°C

    Materials: LED+PCB+Driver+heatsink 6063

    IP Rate: IP65

    IK rate: IK08

    Certificate: CE , RoHs, FCC, SAA

    Net weight:7.35kg

    Warranty: 3 years /5 years warranty






    v  240W UFO LED Highbay Size and Reflector Size:

    200W UFO LED lights size
    unit:mm      Beamangle: 90° or 120°

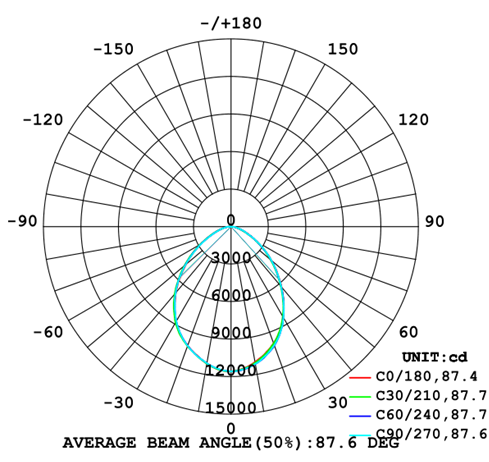

    v   Light Distribution Curve and Llluminance of 240W LED UFO Highbay:

    200W LED UFO

              200W UFO LED highbay lux




    v  Installations of UFO 240W highbay Lights:




    Installations of 240W UFO Highbays:


    u Hook Mounting

    u Hanging Chain Mounting

    u Ceiling Mounting



    u   Hook Mounting Installation of 240W


    240W UFO installation


    l  Drill corresponding size holes in the ceiling. Put the hook into the  holes.

    l  Making the full fixture ‘s ring hang on the hook. Keeping it stable.

           l Notes distinguish the L / N / GND line.




    u  Hanging Chain Installation of 240W


    highbay UFO 240W

    l  Drill corresponding size holes in the ceiling, Put the Expansion bolts        into holes. Fixed the hook on the ceiling with nut

    l  As Photo 2 showing , Using the chain’s buckle button up the fixture’s     ring.

    l  As photo 3 showing , Hanging the chain’s another-side ring on the         hook with carefully

           l  Notes distinguish the L / N / GND line.



    u  Ceiling Installation of 240W


    highbay 240W UFO

    l  Drill corresponding size holes in the ceiling, Put the Expansion bolts into

        holes. Fixed the hook on the ceiling with nut.

    l  Locking up the fixture’s bracket and Wall-mounting bracket with screw.

        Which in a reasonable beam angle.

    l  Notes distinguish the L / N / GND line





    v  Packaging for UFO LED 240W Higbay Lights


    (Note:  Portable packaging, easy to carry)


    240W UFO light packing

      Package size: 42cm*42cm*25cm

      G.W.:7.98kg; Volum weight: 8.85kg


    Storage Environment:

    Ambient Operating Temperature range:-20 ℃ --- + 45 ℃

    Environment Storage Temperature range:-25 ℃ --- + 65 ℃

    Environment Ratings: dry and ventilated moisture-free environment




    v  LED 240W UFO Highbay Old-Aging Test & Goods shimpmet:

    blob.pngLED 240W UFO Highbays
