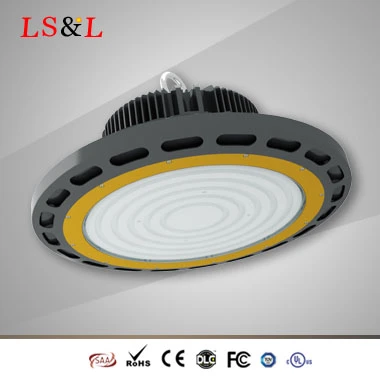

UFO LED Highbay Light 200W, CE, RoHs, Meanwell UL Driver, 5 Years High Quality Warranty, Warehouse And Stadium Lighting

Luxsky Lighting UFO series LS-03-HB-UFO-200W, LED high power 200W, 85-277V AC input,Philips 3030 LEDs, Meanwell 200W driver, which is our new design and hotsales product, and can replaces the traditional LED highbay lights' large shape and save the space of package and installation becomes more easily and more convenient for shipment.What's more, it helps our clients to save much more profile in shipment; It is widely used in the high places, such as basketball halls, stadium, bus/train/airplane stations; big warehouse, factories workshork and warehouse, seaship warehouse and so on

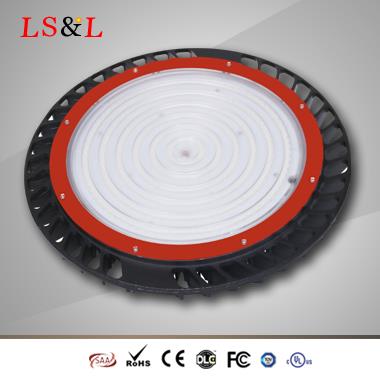

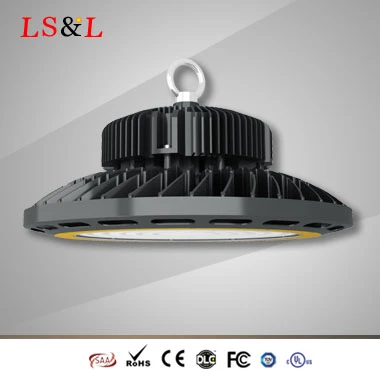

    High Power 200W UFO LED Highbay Lights


    Luxsky Lighting UFO series LS-03-HB-UFO-200W, LED high power 200W, 85-277V AC input,Philips 3030 LEDs, Meanwell 200W driver, which is our new design and hotsales product, and can replaces the traditional LED highbay lights' large shape and save the space of package and installation becomes more easily and more convenient for shipment.What's more, it helps our clients to save much more profile in shipment; It is widely used in the high places, such as basketball hall, stadium, bus/train/airplane stations; big warehouse, factories workshork and warehouse, seaship warehouse and so on.


    LED UFO lights 200W
    200W highpower UFO lights
    highbay LED 200W UFO


    v  200W LED UFO Highbay Light Application:

     LS-03-HB-UFO-200W high quality LED highbay lights are used  in the places:

     Basketball hall, stadium, bus/train/airplane stations; big warehouse, factories workshork and warehouse.



                    Warehouse Lighting

    UFO highbay  200W light    UFO warehouse highbay 200W



    v  200W LED UFO Highbay's Specification:

    Products Brand: LUXSKY LIGHTING

    Product Name  : 200W UFO LED Highbay light

    Color Temperature: 4000-4500K/5000-5500K/6000-6500K

    Light Power   : 200W

    Color Rendering Index: >80Ra

    InputVoltage  : 85-277V AC, 50Hz/60Hz

    LED Working voltage : DC30-40V

    Quantity of LEDs: 288pcs

    LED Brand:   Philips 3030 SMD

    Lighting Efficency: 120-150lm/W

    LED luminous  : >24000lms

    Light's Efficiency: >91%

    Illumiance Uniformity: >0.85

    Power Factor: >0.95

    THD : <20%

    UL Driver: Meanwell/Philips/Huatian


    LED lifetime: 50,000 hours

    LED UFO Shell: Aluminum Fin Radiatior 6063

    Reflector Beamangle: 90° or 120°

    Installation: hook/suspended/ceiling mounted

    LED working Temperature: -20°C to +50°C

    Storage Temperature:-20°C to +60°C

    Materials: LED+PCB+Driver+heatsink 6063

    IP Rate: IP65

    IK rate: IK08

    Certificate: CE , RoHs, FCC, SAA

    Net weight:6.75kg

    Warranty: 3 years /5 years warranty






    v  200W UFO LED Highbay Size and Reflector Size:

    200W UFO LED lights size
    unit:mm      Beamangle: 90° or 120°


    v   Light Distribution Curve and Llluminance of 200W UFO Highbay:

    200W LED UFO

              200W UFO LED highbay lux




    v  Installations of UFO 200W highbay Lights:




    Installations of 200W UFO Highbays:


    u Hook Mounting

    u Hanging Chain Mounting

    u Ceiling Mounting



    u   Hook Mounting Installation of 200W


    200W UFO installation


    l  Drill corresponding size holes in the ceiling. Put the hook into the  holes.

    l  Making the full fixture ‘s ring hang on the hook. Keeping it stable.

           l Notes distinguish the L / N / GND line.




    u  Hanging Chain Installation of 200W


    highbay UFO 200W

    l  Drill corresponding size holes in the ceiling, Put the Expansion bolts        into holes. Fixed the hook on the ceiling with nut

    l  As Photo 2 showing , Using the chain’s buckle button up the fixture’s     ring.

    l  As photo 3 showing , Hanging the chain’s another-side ring on the         hook with carefully

           l  Notes distinguish the L / N / GND line.



    u  Ceiling Installation of 200W


    highbay 200W UFO

    l  Drill corresponding size holes in the ceiling, Put the Expansion bolts into

        holes. Fixed the hook on the ceiling with nut.

    l  Locking up the fixture’s bracket and Wall-mounting bracket with screw.

        Which in a reasonable beam angle.

    l  Notes distinguish the L / N / GND line





    v  Package for UFO LED 200W Higbay Lights


    (Note:  Portable packaging, easy to carry)


    200W UFO light package

      Package size: 42cm*42cm*25cm

      G.W.:7.88kg; Volum weight: 8.85kg


    Storage Environment:

    Ambient Operating Temperature range:-20 ℃ --- + 45 ℃

    Environment Storage Temperature range:-25 ℃ --- + 65 ℃

    Environment Ratings: dry and ventilated moisture-free environment




    v  Production & Old-Aging Test of UFO 200W Lights:

    200W warehouse UFO stockroomLED 200W UFO Highbays
