LED TRIAC Dimming Driver 110V 6-36W With UL, ETL Certificates

LED TRIAC Dimming Driver 110V 6-36W With UL, ETL Certificates

110V LED Triac dimming drivers are a typical dimmable driver for led lamps which are used in American markets, such as Canada, America, even sounth America, Colombia, Mexico, Panama and so on. They are popular dimming ways in these areas or countries. We also offer high quality drivers separately for our clients to help them to solve their lighting project solutions with 3-5 years warranty.

    American 110-130V LED Triac Driver Series:


            triac dimming led driver

    110V-130V LED Triac dimming drivers are a typical dimmable driver for led lamps which are used in American markets, such as Canada, America, even sounth America, Colombia, Mexico, Panama and so on. They are popular dimming ways in these areas or countries. We also offer high quality drivers separately for our clients to help them to solve their lighting project solutions with 3-5 years warranty.


    LED Triac Dimming Drivers Series:

    Part No.PowerInput V.Output V.Current
    EfficencyPFHDSize(mm)Certificate


    LS-21-T1-D20

    6-8W120V/60Hz18-32V
    280mA81-83%0.9-0.95  /72.5*30*20ETL
    9-12W120V/60Hz32-52V280mA84-85%0.9-0.95 /72.5*30*20ETL
    15W
    120V/60Hz30-40V350mA85-86%0.9-0.95 /72.5*30*20ETL
    LS-21-T1-A42
    18W120V/60Hz40-60V280mA84-85%0.95-0.99≤20%80.5*34.5*20ETL
    LS-21-T1-A7124W120V/60Hz50-80V280mA87%-88%0.95-0.99≤20%80.5*34.5*21ETL
    LS-21-T1-A6533W120V/60Hz30-40V720mA85%-88%0.90-0.98 /104.5*34.5*22ETL


    LS-21-T1-A67

    15W120V/60Hz25-40V
    340mA84-85%0.98-0.99≤20%80.5*34.5*20UL  FCC
    9-12W120V/60Hz25-40V280mA85%-86%0.95-0.98≤20%80.5*34.5*20UL  FCC
    LS-21-T1-D1918W120V/60Hz21-40V400mA80%-82%0.95-0.99≤20%20*28*20ETL,FCC


    Features of Triac dimmable LED Driver:


    Isolated, Al. Shell / Naked, high PF.

    Dimming range: 5%-100%&on/off

    Short Circuit/OverVolatge/Over Temperature Protection

    Narrow Voltage Input 110-130V AC

    Good dimming compatibility

    Dimming Mode: Triac/FLV

    Working temperature:-30-45℃

    Stock Temperature:-40-80℃

    High Voltage Afford:3750VAC

    Life time: >50,000Hrs@<45℃

    Electromagnetic Emission:ENHH015 GB17743 NE61000-3-3 EN61000-3-2 CLASS C

    Safe range:EN61347-1 EN61347-2-13/GB19510-2-14/UL8750

    Electromagnetic interference:EN61547 EN61000-4-2,3,4,5,6,8,11

    Compatibile Brand Triac Dimmer:LUTRON, Osram, Tridonic,Philips,Luxeon,Cree,Panasonic,Toshiba and so on

    Triac LED driver USA

    Warranty: 5 Years


    Application: 6-30W LED down lights, LED round panels, LED square Panels in North American.

    OEM/ODM Available

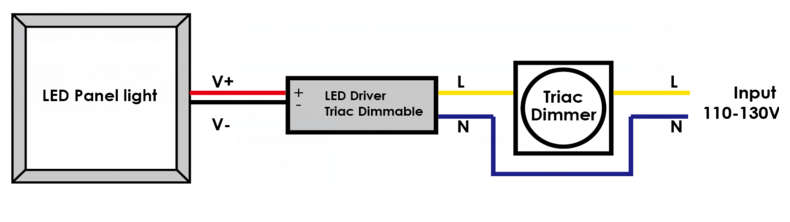

    Connect Drawing for LED Triac dimming Drivers:

    Triac Dimming: AC Switch Dimming

    Dimming Range: 5%-100% & on/off

    Dimming Type: front or back triac dimming


    connect drawing for triac driver.png




    If you're going to wholesale the led triac dimming driver 110v 6-36w with ul, etl certificates made in China, welcome to contact our manufacturers and suppliers. We have introduced advanced equipment and technology into our factory to better serve you.
Hot Tags: led triac dimming driver 110v 6-36w with ul, etl certificates, China, factory, suppliers, manufacturers, wholesale, made in China
