1.5M High Lumen and Unique Design Commercial Linear Pendant Lighting System

LS-11-LLB-1.5M Series Linear lamps are a new unique design products to lead the world market to do a lighting revolution for replacement of big brand traditional T5 and T8 tube fixtures, which is used in the advanced official and commercial lighting, also the project lighting items with very...

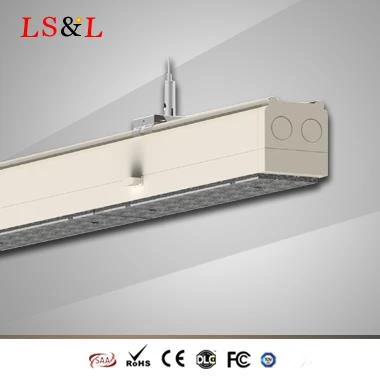

    LED Linear light system

    LS-11-LLB-1.5M Series Linear lamps are a new unique design products to lead the world market to do a lighting revolution for replacement of big brand traditional T5 and T8 tube fixtures, which is used in the advanced official and commercial lighting, also the project lighting items with very easy and convenient installation.


    Features:
    1. High Bright 2835/5630 SMD LEDs with the chips of Epistar, Samsung,Philips
    2. Color: 3000K/ 4000K / 5000K/ 6000K
    3. Good lighting Lens with PMMA, 30°/ 60°/ 90°/ D25°/ S25°/ 120°available
    4. International 6063 high quality aluminum housing for quick heat releasing
    5. Body color: silver/white
    6. Length: 1500mm
    7. Lighting efficiency: >130lm/W
    8. High PF Isolated LED driver and steady with TUV, SAA approval
    9. LED driver built-in housing body
    10. Widely input voltage choosing: AC100-265V
    11. Easy installation: suspended/ Surface Mounted
    12. Easy to connect from one to another lamp, fast installation
    13. Eco-friendly, long lifetime, high brightness, energy-saving, UGR<19
    14. 0-10V/ Dali dimmable
    15. CE& RoHs, TUV, SAA, SGS


    Application:


    1500mm dreamline Linear lights are used in the places of Office Lighting, Commercial Lighting, meeting rooms, office rooms, supermarkets, halls, shops, workshops, warehouse, etc.

    Warranty: 5 years


    Service advantage:
    1. High quality warranty for 5 year remove your worry about after service
    2. Professional R&D team to help you solve the all lighting project solution
    3. Mass standard stock materials to help you get quick product sales
    4. OEM&ODM on your customized lightings we can help you to design and put into product.
    5. Nice service for sales within 24 hours reply


    Lamp Lens Beam Angle:

    1.5m linear lamp beam angle

    Parameters for LED Model:

    LED linear model

    Not dimmable/0-10V

    LED linear lamp 1.5m

    Part No.

    Size(mm)

    Power

    Lumen/W

    CRI

    LEDs

    Lens

    PF

    LS-11-LLB-M15-40R

    1437*65*20

    40W

    130-140/W

    >80Ra

    2835/5630

    30°/60°/90°

    /120°/D25°/S25°

    >0.9

    LS-11-LLB-M15-48R

    1437*65*20

    48W

    130-140/W

    >80Ra

    2835/5630

    30°/60°/90°/

    120°/D25°/S25°

    >0.9

    LS-11-LLB-M15-60R

    1437*65*20

    60W

    120-130/W

    >80Ra

    2835/5630

    30°/60°/90°/

    120°/D25°/S25°

    >0.9

    LS-11-LLB-M15-72R

    1437*65*20

    72W

    120-130/W

    >80Ra

    2835/5630

    30°/60°/90°/

    120°/D25°/S25°

    >0.9


    Dali Dimmable

    Part No.

    Size(mm)

    Power

    Lumen/W

    CRI

    LEDs

    Lens

    PF

    LS-11-LLB-M15-40D

    1437*65*20

    40W

    130-140/W

    >80Ra

    2835/5630

    30°/60°/90°

    /120°/D25°/S25°

    >0.9

    LS-11-LLB-M15-48D

    1437*65*20

    48W

    130-140/W

    >80Ra

    2835/5630

    30°/60°/90°/

    120°/D25°/S25°

    >0.9

    LS-11-LLB-M15-48D

    1437*65*20

    60W

    120-130/W

    >80Ra

    2835/5630

    30°/60°/90°/

    120°/D25°/S25°

    >0.9

    LS-11-LLB-M15-72D

    1437*65*20

    72W

    120-130/W

    >80Ra

    2835/5630

    30°/60°/90°/

    120°/D25°/S25°

    >0.9


    5 Wires LED Trunk

    LED Trunk for linear lamps

    Part No.

    Size(mm)

    Description

    Body Color

    LS-11-LLB-T15-05

    1437*65*50

    1x1.5M Module/5x2.5mm² wires

    Silver/ White

    LS-11-LLB-T30-05

    2875*65*50

    2x1.5M Module/5x2.5mm² wires

    Silver/ White

    LS-11-LLB-T45-05

    4312*65*50

    3x1.5M Module/5x2.5mm² wires

    Silver/ White


    7 Wires LED Trunk

    Part No.

    Size(mm)

    Description

    Body Color

    LS-11-LLB-T15-07

    1437*65*50

    1x1.5M Module/5x2.5mm² wires

    Silver/White

    LS-11-LLB-T30-07

    2875*65*50

    2x1.5M Module/5x2.5mm² wires

    Silver/White

    LS-11-LLB-T45-07

    4312*65*50

    3x1.5M Module/5x2.5mm² wires

    Silver/White


    Connection:

    LED linear lamp 1500mm

    Accessories:
    Blank cover for the lamp system where do not need the lighting Model.

    LED linear light PC Cover.jpg

    Node Connectors:

    LED connector for linear light system

      "L" connector        "T" Connector      "十" Connector


    End cap:

    Linear lamp end cap

    Installation Accessories:

    mounted clips for linear light

    suspended steel wire

    Surface MountedSuspended Mounted


    Materials stock and Aging Testing:

    Linear lamp trunklinear lamp testing


    Application Pictures:

    linear light project 1500mm

    LED linear lamp project

    If you're going to wholesale the 1.5m high lumen and unique design commercial linear pendant lighting system made in China, welcome to contact our manufacturers and suppliers. We have introduced advanced equipment and technology into our factory to better serve you.
