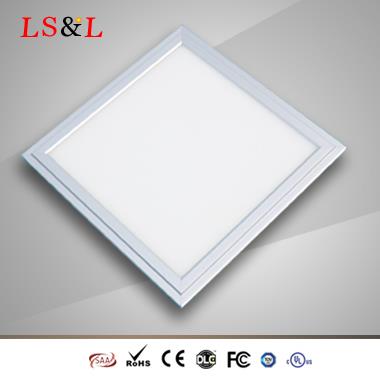

IP20 UL LED Panels with UGR<19 is a functional panel based on the normal UL panels and create its special application for our clients who have a higher requirement for UGR. such as reading rooms,museum, offices and so on. Luxsky lighting apply UL with " Green Lighting" Brand and is professional for USA or other markets who need UL List: E476523.
| IP20 nonwaterproof + UGR<19|
IP20 UL LED Panels with UGR<19 is a functional panel based on the normal UL panels and create its special application for our clients who have a higher requirement for UGR. such as reading rooms, museum, offices and so on. Luxsky lighting apply UL with " Green Lighting" Brand and is professional for USA or other markets who need UL List: E476523.
Features for IP20 UGR UL LED Panels：
1. 2835 SMD high brightness with Epistar/ San'an Chips
2. Color: 2800K/ 3000K/ 4000K / 5000K/ 6000K
3. PMMA lighting board and high quality PS diffuser UGR<19
4. High quality 6063 aluminum housing for quick heat releasing
5. Body color: silver/white
6. Size: 2'x2'/603x603mm/600x600mm
7. AC 100-277V,50/60Hz, DC36-42V
8. Power: 36-72watts available for IP20 UGR UL panels
9. Installation: Recessed/ suspended/ surface mounted
10. Waterproof rate: IP20/40, UGR<19
11. 0-10V dimmable available, IP20 driver, Emergency Kits back up
12. Eco-friendly, long lifetime, high brightness, energy-saving
13. CUL，UL, DLC, TUV CE, RoHs, SAA
IP20 UGR LED panels are mostly used in the special places of office lighting, commercial lighting, public project lighting: offices, museum, reading rooms and where has a requirement for UGR data.
Warranty: 5 years
Parameters for IP20 UGR Panels:
xx standards for Power range
ND standards for Not Dimmable
DA standards for Dimmable
28 standards for 2835 SMD
Nonwaterproof Rate: IP20
Function Emergency Lighting Driver Introduction(available):
◆Match with DC12V battery (ni-M H), (ni-C d) , which can be high temperature resistant and can be charged.
◆The device can meet the requirement of 10-100 watts full power LED panel to realize the emergency function;
◆When emergency lighting is started, the brightness can be 30% -50% of the normal lighting.
◆It meets international emergency standard, 30% emergency lighting, three-color indicat or lights.
◆When AC power is working, the inverter makes the battery in the situation of charging or preparing
to work; Once earthquak es, fire disasters or explosions happen, the AC power is off, so the inverter
will start the emergency batteries to offer power to lights.
◆When the battery finishes charging, it will keep the power , compensate the battery' s discharging
and maintain the performance and lifetime of battery.
◆It can meet 1-5 hour s emergency lighting after match the fitful batteries.
◆Environment temperature : -20 to 60℃ .
◆Connect the driver and panel strictly by seeing the connected drawing, do not
advise to take off the cover .
◆Customer could check the inverter 's power stock per iodically.
◆Parameters(take 40W emergency panel as sample):
1>. AC 100-240V input , 50/ 60Hz;
2>. DC20-70V Out put;
3>. For LED power : 10-100W
4>. Em ergency time: 3 hrs ( can be custom if possible)
5>. Batter: Dc12V;
6>. Charge current: 100-200m A;
7>. Charge time: 30-45Hrs by slowing charge way;
8>. Max. Size: 440* 75* 75mm.
Emergency Driver Connect Drawing & Attention:
◆Seeing the connect drawing and each part will separately connect
to the following lines:
1>. "1" connect AC"L".
2>. "2" connect AC"N" and LED driver's AC "-" ends.
3>. From "1" to connect one wire to wall switcher "S",
then connect to "3". LED driver's AC "L" also needs to connect to "3".
4>. "4" connect LED driver's DC"+" of DC output end.
5>. "5"connect Lamp's "-" and LED driver's DC"-" here.
6>. "6"connect lamp's " +" here.
After all connections are finished, then turn on the power to test.
◆Do not allow the emergency driver to be no load, no matter to check the
lighting function or test the inverter's charging function, it must connect lamp to work.
◆Main driver wire: AC "L" and "N" must connect to the main wire in the emergency
box, switcher is not allowed to install on them.
◆When lamp starts emergency lighting, it will be not controlled by Switcher.
◆Green LED: it shows driver working; Red LED, it shows recharging; Yellow LED:
it shows malfunction.
◆In the emergency lighting, except LED lamp, all working sign lamps will be turned off.
IP20 UL UGR Panel of Operating introduction:
UL IP20 Panel Installation ways:
