IP65 Waterproof LED Panel Light

Waterproof LED Panels are designed for special places where need higher IP rate for protection of wet air or whether, splashing, raining, etc. Features: 1. 2835 SMD high brightness with Epistar/San'an Chips 2. Color: 2800K/3000K/4000K/5000K/6000K 3. PMMA lighting board and high quality PS...

    LED waterproof panel IP65

                                              UL LED certificate


    Waterproof LED Panels are designed for special places where need higher IP rate for protection of wet air or whether, splashing, raining, etc.


    Features:
    1. 2835 SMD high brightness with Epistar/San'an Chips
    2. Color: 2800K/3000K/4000K/5000K/6000K
    3. PMMA lighting board and high quality PS diffuser
    4. High quality 6063 aluminum housing for quick heat releasing
    5. Body color: silver/white
    6. Size: 300x300mm, 300x600mm, 300x1200mm, 595x595mm, 600x600mm, 620x620mm, 600x1200mm
    7. AC 100-240V,50/60Hz, DC36-42V
    8. Power: 18-72watts available for the panels
    9. Installation: Recessed/suspended/surface mounted
    10. Waterproof rate: IP65
    11. 0-10V dimmable available
    12. Eco-friendly, long lifetime, high brightness, energy-saving
    13. TUV CE & RoHs, UL


    Application:
    Waterproof LED panels are mostly used in the places of home & hotels' bathrooms, Kitchens, car-wash shops, boats, underground parking lots, outdoor corridors and some special lighting projects.

    Warranty: 3 years


    Parameters:

    截图20170119161404.pngIP65 LED panels:

    Part No.

    Size(mm)

     power

    Input voltage

    CRI

    Color

    PF

    LS-01-PL3030

    295*295*10mm

    18W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL3060

    300*600*10mm

    18/24/36W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL3012

    295*1195*10mm

    36-72W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL5959

    595*595*10mm

    36-72W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL6060

    600*600*10mm

    36-72W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL6262

    620*620*10mm

    36-72W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL6012

    595*1195*10mm

    36-72W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9


    IP65 LED Panel Testing:

    IP65 waterproof led panel testingLED IP65 waterproof panel light testing


    0-10V dimmable (IP65 waterproof LED Panel lights):

    IP65 LED Panel 0-10V dimming

    Accessories parts:


    Ip65 panel for indoor swimming pool.jpgIp65 panel for kitchen.jpg

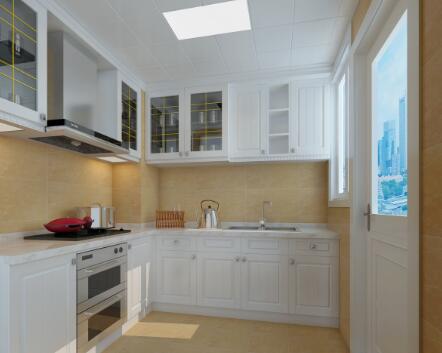

    Indoor Swimming poolKitchen


    IP65 panel for washroom.jpgIP65 panel light for swimming pool.jpg

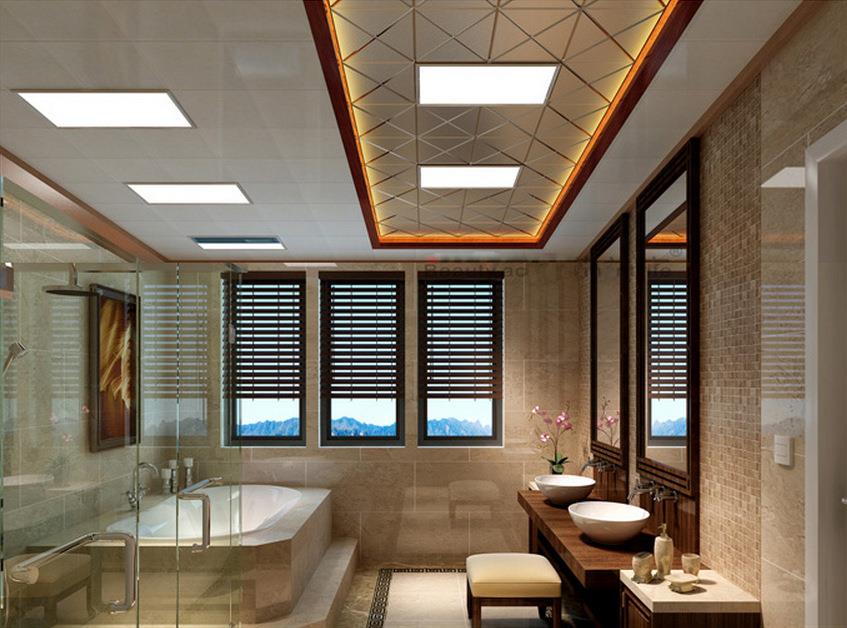

    Washroom lightingSwimming Pool

    If you're going to wholesale the ip65 waterproof led panel light made in China, welcome to contact our manufacturers and suppliers. We have introduced advanced equipment and technology into our factory to better serve you.
