150W IP66 Waterproof LED Road Lamp With 3030 Lumileds High Power CE& RoHs,meanwell Driver

150W outdoor LED Street lights,called LED road lamp or LED outdoor road lights,part No.: LS-13-SL-150W-II, is a module type LED street lights which are designed by our R&D department, high power and high lumens >120lm per watts, with soil gray color for body heat sink, high IP66, IK10, there are three pcs 50W modules to assemble,it can fit for the application of 8-10 meter sreet or road pole to use, such as the places of street lighting roads, city road or streets, city's riverside landscape lighting, and other public luminaire projects.Welcome to enquiry us high quality 5 years guarantee 150W LED road or street lights.

    150W outdoor LED Street lights,called LED road lamp or LED outdoor road lights,part No.: LS-13-SL-150W-II, is a module type LED street lights which are designed by our R&D department, high power and high lumens >120lm per watts, with soil gray color for body heat sink, high IP66, IK10, there are three pcs 50W modules to assemble,it can fit for the application of 8-10 meter sreet or road pole to use, such as the places of street lighting roads, city road or streets, city's riverside landscape lighting, and other public luminaire projects.Welcome to enquiry us high quality 5 years guarantee 150W LED road or street lights.


    150W waterproof LED Street Lights:

    150W LED street lights.jpgled street light 150w.jpg


    Features for 150W LED Street Lights

    Product Name: 150W LED Street Light

    Product Brand: Luxsky Lighting

    LEDs: LUMILEDs Brand 3030 SMD

    Max. Power: 150W

    CRI: >80Ra

    Beamangle: 80x150°

    AC Input Voltage: AC85-277V

    Color Temperatuere: Natural White: 4000-4500K; Pure White: 5000-5500K, Cool white 6000-6500K

    Driver: high power UL meanwell driver; PF:>0.9

    Working Temperature: -30 °to 55 °

    Lumen efficacy: >120lm/W

    Power efficiency: 92%

    Total lumens: >18000lms

    6063 high quality Die Casting aluminum housing Shell-150W Street lights

    Light body color: soil gray

    IK08 & IP66 waterproof

    Install Height: 8-10Meters for public lighting projects

    Anti-oxidant, anti-corrosion, anti-UV,

    Eco-friendly,Energy saving, power saving, high brightness, Low-Carbon,

    Original production: Shenzhen of China

    CE & RoHs approval, SAA, UL driver

    Quality Guarantte: 3 years or 5 years



    150W LED Street Light's Parameters:

    Model No.Size(mm)PowerInput VoltageCRIColorIP rate
    LS-13-SL-WW150-II602x278x60mm150WAC85-265V80Ra2800-3200KIP66 rate
    LS-13-SL-NW150-II602x278x60mm150WAC85-265V80Ra4000-4500KIP66 rate
    LS-13-SL-PW150-II602x278x60mm150WAC85-265V80Ra5000-5500KIP66 rate
    LS-13-SL-CW150-II602x278x60mm150WAC85-265V80Ra6000-6500KIP66 rate



    Waterproof IP66 150W LED Street Light Size Drawing:

    150W LED road lamp



    150W IP66 Waterproof LED Street Lamp Application:

    High Speed road,Countryside street/road, small road lighting, Public lighting, etc.

    street light led 150W


    LED 150W Road/Street Light Installation:

    150W street light LED

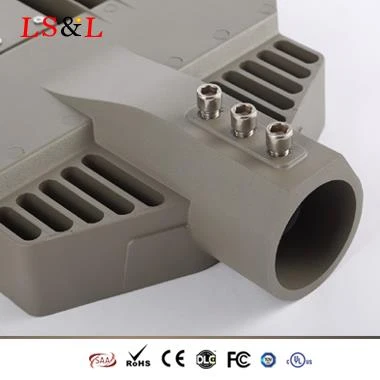

    Step 1: The arrow indicates the pole by inserting the positioning after the pole plate fixing screw locking.

    (3PCS)


    Step 2: The three wire AC power input wires and poles correspond connected.


    150W Street/Road light packaging:

    packing for 150WLED street light






    Packing size:

    620x300x105mm


    G.W: 7.8kg








    If you're going to wholesale the 150w ip66 waterproof led road lamp with 3030 lumileds high power ce& rohs,meanwell driver made in China, welcome to contact our manufacturers and suppliers. We have introduced advanced equipment and technology into our factory to better serve you.
Hot Tags: 150w ip66 waterproof led road lamp with 3030 lumileds high power ce& rohs,meanwell driver, China, factory, suppliers, manufacturers, wholesale, made in China
