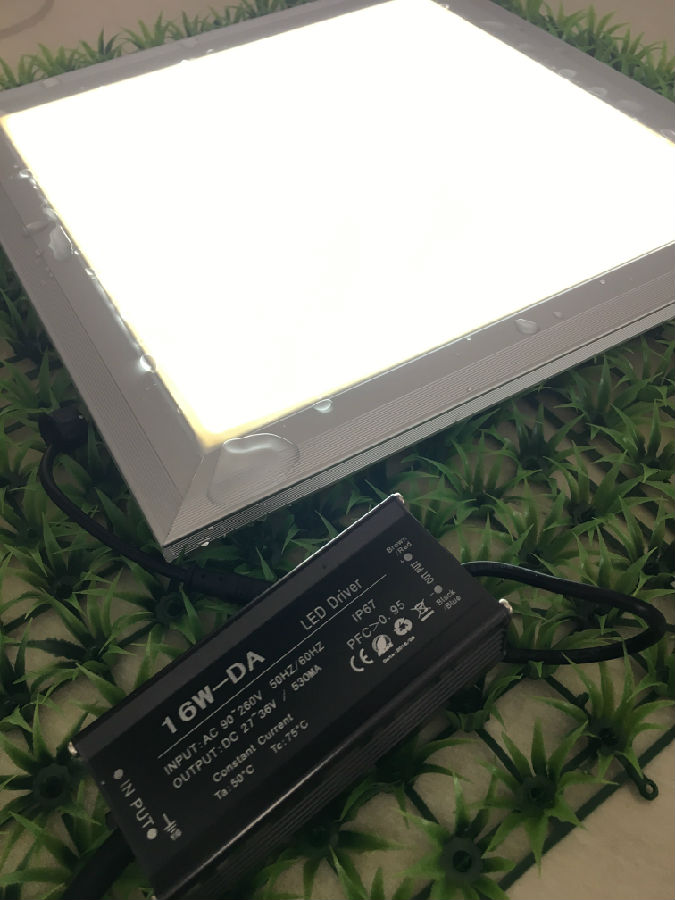

IP67 Waterproof LED Panel Light

Waterproof LED Panels are designed for special places where need higher IP rate for protection of wet air or whether, splashing, raining, etc. Features: 1. 2835 SMD high brightness with Epistar/San'an Chips 2. Color: 2800K/3000K/4000K/5000K/6000K 3. PMMA lighting board and high quality PS...

    Waterproof LED Panels are designed for special places where need higher IP rate for protection of wet air or whether, splashing, raining, etc.


    Features:
    1. 2835 SMD high brightness with Epistar/San'an Chips
    2. Color: 2800K/3000K/4000K/5000K/6000K
    3. PMMA lighting board and high quality PS diffuser
    4. High quality 6063 aluminum housing for quick heat releasing
    5. Body color: silver/white
    6. Size: 300x300mm, 300x600mm, 300x1200mm, 595x595mm, 600x600mm, 620x620mm
    7. AC 100-240V,50/60Hz, DC36-42V
    8. Power: 18-72watts available for the panels
    9. Installation: Recessed/suspended/surface mounted
    10. Waterproof rate: IP67
    11. 0-10V dimmable available
    12. Eco-friendly, long lifetime, high brightness, energy-saving
    13. TUV CE & RoHs


    Application:
    Waterproof LED panels are mostly used in the places of home & hotels' bathrooms, Kitchens, car-wash shops, boats, underground parking lots, outdoor corridors and some special lighting projects.

    Warranty: 3 years

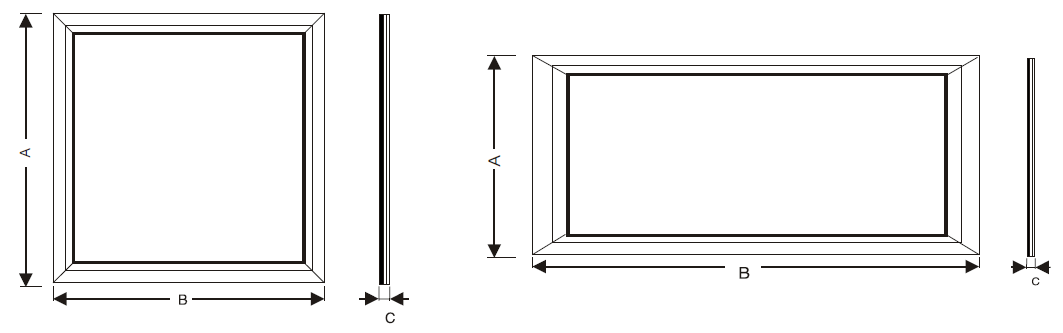

    Parameters

    IP67 LED panels:

    Part No.

    Size(mm)

     power

    Input voltage

    CRI

    Color

    PF

    LS-01-PL3030-IP67

    295*295*12mm

    18W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL3060-IP67

    300*600*12mm

    18/24/36W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL3012-IP67

    295*1195*12mm

    36-60W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL5959-IP67

    595*595*12mm

    36-60W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL6060-IP67

    600*600*12mm

    36-60W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

    LS-01-PL 6262-IP67

    620*620*12mm

    36-60W

    AC100-240V

    >80Ra

    3000/4000/6000K

    >0.9

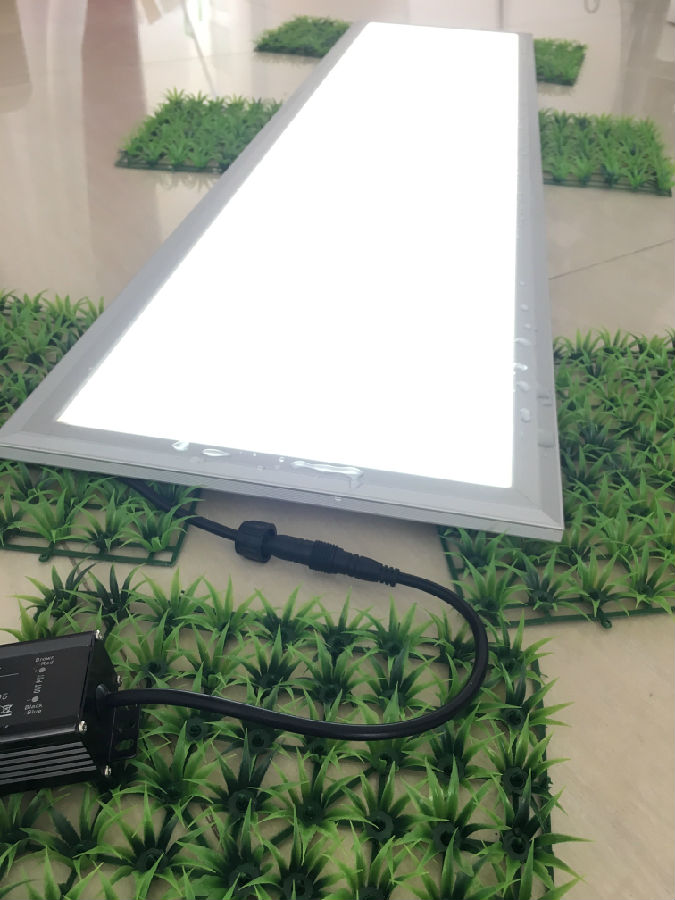

    IP67 Testing:

    If you're going to wholesale the ip67 waterproof led panel light made in China, welcome to contact our manufacturers and suppliers. We have introduced advanced equipment and technology into our factory to better serve you.
