Mini LED Wall Washer Lamp with 5W/7W indoor or Outdoor
The installation is simple.The angle is perfect. The light is distributed evenly.Night lighting effect is wonderful. You can choose R/G/B/W, changing color RGB and RGBW.The product material is good. The appearance is beautiful,optical design, independent research and development, excellent performance.It's a rarely novel and innovative product.
 |  |  |
Application:
Walls, aisles;
architectural;
silhouettes, decorative;
objects, atmosphere;
Dimensions:
Ceiling Surface( FIND-06) | Wall Surface( FIND-09) |
|  |
Specifications:
| Model | LS-15-WW-FIND-06 | LS-15-WW-FIND-09 | LS-15-WW-FIND-06 | LS-15-WW-FIND-09 |
| Mounting | Ceiling Surface | Wall Surface | Ceiling Surface | Wall Surface |
| Power(W) | 5W/7W | 5W/7W | 5W RGB/RGBW | 5W RGB/RGBW |
| Driver | CE/UL | CE/UL | CE/UL | CE/UL |
| PF | >0.9 | >0.9 | >0.9 | >0.9 |
| Input Voltage | AC100-277V,50/60Hz | AC100-277V,50/60Hz | AC100-277V,50/60Hz | AC100-277V,50/60Hz |
| Control | General | General | DMX512 | DMX512 |
| CCT | R/G/B/W | R/G/B/W | RGB/RGBW | RGB/RGBW |
| LED | Cree | Cree | 3535 SMD | 3535 SMD |
| LED Quantity | 4pcs | 4pcs | 3pcs | 3pcs |
| Beam Angle | 100*20° | 100*20° | 100*20° | 100*20° |
| Operating Temp. | -40°C～+50°C | -40°C～+50°C | -40°C～+50°C | -40°C～+50°C |
| Material | Aluminum + PC | Aluminum + PC | Aluminum + PC | Aluminum + PC |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Warranty | 3 years | 3 years | 3 years | 3 years |
| Product Size(mm) | 100*80*74.5mm | 106*106mm | 100*80*74.5mm | 106*106mm |
General Installations:
 |
|  |
North American standard junction box installation
 | ||
 |  |  |
Ceiling Instalation
 |  |
 |

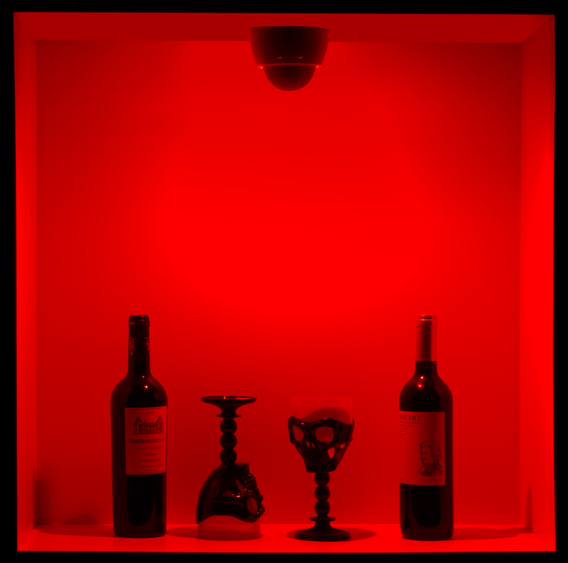

Lighting Effictive Photos
|  |  |
 |  |  |
Project Pictures
 | |
 |  |
Package for mini Wall Washer
 | 27pcs/CTN 18.6Kg/CTN Dimension: 405*330*335mm/CTN |
