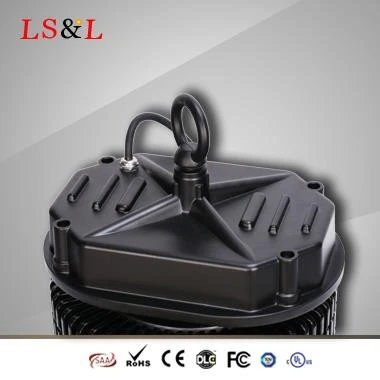

100W LED Highbay Lighting Series
Luxsky lighting LED Highbay lights LS-03-HB-100W, its power 100W, 120-150lm/W solution available, AC85-277V, with meanwell UL driver, 5 years warranty for high quality and high brightness, they are used in the places of factories, warehouses, GAS, Stadium, basketball holls, Airports and so on for high place lighting projects, we adopt Lumileds LEDs for our brand partner and our products export to Europe, North American , South American, Australia, Asia, Middle East and are popular with our client because of our good service and high quality and lighting design& solutions.
v100W LED Highbay Light Application:
|
LS-03-HB-100W high quality LED highbay lights are used in the places: Factories, warehouses, GAS, Stadium, Basketball holls, Airports and so on for high place lighting projects. |
Basketball Stadium |
 |
 |
vLED 100W Highbay's Specification:
|
Products Brands: Luxsky Lighting Product name : 100W LED Highbay Lights Color : 3000K/4000K/5000K/6000K LED Power : 100W CRI : >70Ra/80Ra InputVoltage : AC85-277V, 50/60Hz LED Working voltage : DC28-36V LED Quantity: 120pcs LED Brand: Lumileds SMD LED Lighting Efficency: >120lm/W LED luminous : >12000lms Light's Efficiency: >92% Ilumiance Uniformity: >0.85 Power Factor: >0.95 Total Harmonic Distortion : <20% LED Driver: Meanwell/Lumileds
|
LED lifetime: >50,000Hrs Lamp shell: aluninum Fin radiator Light Distribution: Symmetrical/Circular Spot Reflector Beamangle:60/90 degree Install: Hook Mounted/ Ceiling/Suspended LED Junction Temerature: <75℃ Working Temperature:-20℃ to +45℃ Storage Temperature:-25℃ to +65℃ Materials: LED+ PCB+ Driver+ Black aluminum Shell Certificates: CE& RoHs IP Rate: IP65 Net weight: 6.58kg Wattanty: 3 years/5 years |
v100W LED Highbay's Size and Reflectors Size:
 |
 |
| unit:mm | Beam angle of reflector: 60 °or 90° |
vLight Distribution curve and Llluminance
 |
 |
vInstallation for Higbay Lights:
|
The Three installations:
uHook Mounting Installation uHanging Chain Installation uCeiling Installation
|
uHook Mounting Installation
lDrill corresponding size holes in the ceiling. Put the hook into the holes. lMaking the full fixture 's ring hang on the hook. Keeping it stable. l Notes distinguish the L / N / GND line.
|
|
uHanging Chain Installation
lDrill corresponding size holes in the ceiling, Put the Expansion bolts into holes. Fixed the hook on the ceiling with nut lAs Photo 2 showing , Using the chain's buckle button up the fixture's ring. lAs photo 3 showing , Hanging the chain's another-side ring on the hook with carefully l Notes distinguish the L / N / GND line. |
uCeiling Installation
lDrill corresponding size holes in the ceiling, Put the Expansion bolts into holes. Fixed the hook on the ceiling with nut. lLocking up the fixture's bracket and Wall-mounting bracket with screw . Which in a reasonable beam angle. lNotes distinguish the L / N / GND line
|

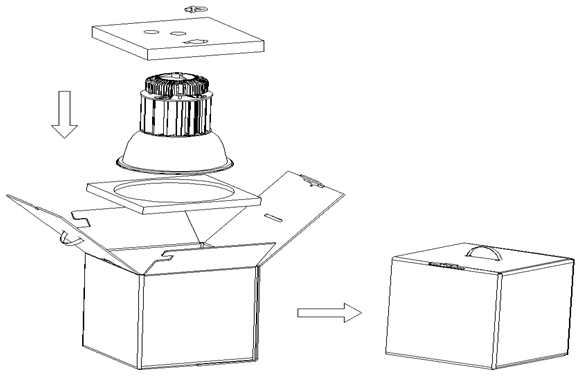

vPackage for 100W Higbay Lights
|
Package size: 40cm*40cm*38cm Net Weight:6.58kg; Volum weight: 12.98kg
|
|
Storage Environment: Ambient Operating Temperature range:-20 ℃ --- + 45 ℃ Environment Storage Temperature range:-25 ℃ --- + 65 ℃ |
vProduction & Old-Aging Test:
 |
 |
