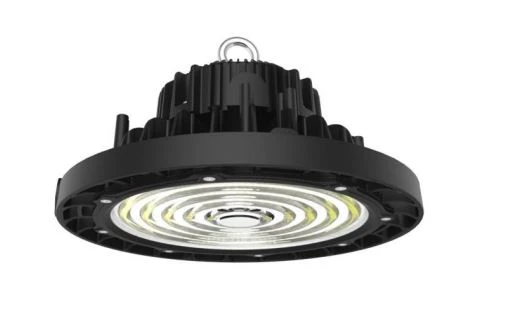

Emergency UFO LED Highbay Lights
Luxsky Lighting UFO series LS-03-HB-UFO-EM, LED Power from 100W to 250W, AC85-277V Input,Philips 3030 SMD, meanwell UL driver, which is our new design and hotsales product, and can replaces the traditional LED highbay lights' large shape and save the space of package and installation becomes more easily and more convenient for shipment.What's more, it helps our clients to save much more profile in shipment; It is widely used in the high places, such as basketball hall, stadium, bus/train/airplane stations; big warehouse, factories workshork and warehouse, seaship warehouse and so on.
 |  |
v Emergency LED UFO Highbay Light Application:
LS-03-HB-UFO-EM high quality LED highbay lights are used in the places: Basketball hall, stadium, bus/train/airplane stations; big warehouse, factories workshork and warehouse. |
Big Factory Workshop |
 |  |
v Emergency LED UFO Highbay's Specification:
Products Brand: Luxsky Lighting Product Name : Emergency UFO LED Highbay Light Part No.: LS-03-HB-UFO-EM Series Color Temperature: 4000-4500K/5000-5500K/6000-6500K Light Power : 100W/120W/150W/200W/250W Color Rendering Index: >70/80Ra InputVoltage : 100/200-277V AC, 50Hz/60Hz Working voltage : DC30-40V LED Brand: Philips 3030 SMD Lighting Efficency: 120-150lm/W Light's Efficiency: >91% Illumiance Uniformity: >0.85 Power Factor: >0.95 THD : <20% UL Driver: Meanwell/Lifud/Sosen | LED lifetime: 50,000 hours LED UFO Shell: Aluminum Fin Radiatior 6063 Reflector Beamangle:30°/60° 90°/ 120° Installation: hook/suspended/ceiling mounted LED working Temperature: -20°C to +60°C Storage Temperature:-25°C to +65°C Materials: LED+PCB+Driver+heatsink 6063 IP Rate: IP65 IK rate: IK08 Certificate: CE , RoHs Warranty: 5 years for lamps Warranty: 2 years for battery device |

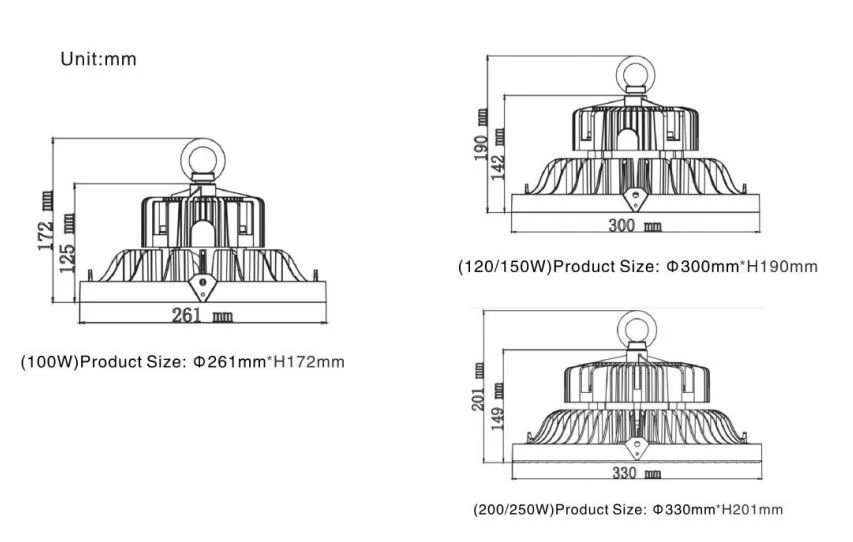

v Emergency UFO LED Highbay Size and Reflector Size:

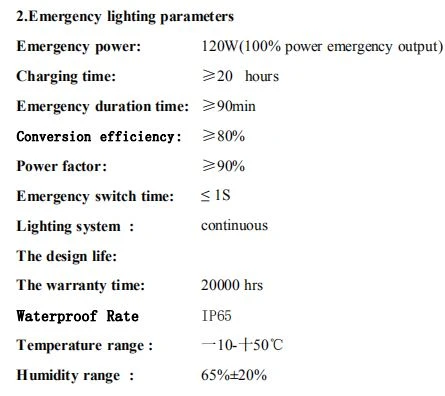

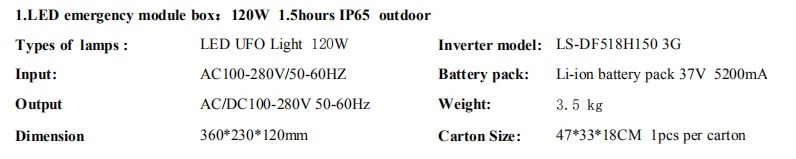

v Specification of 120W Full Power Emergency Device
 | |
 |
|
v Connection of Emergency Device ＆UFO Lights:
v Light Distribution Curve and Llluminance of UFO Highbay:
 | |
v Installations of UFO Highbay Lights:
Installations of UFO Highbays: u Hook Mounting u Hanging Chain Mounting u Ceiling Mounting | u Hook Mounting Installation
l Drill corresponding size holes in the ceiling. Put the hook into the holes. l Making the full fixture ‘s ring hang on the hook. Keeping it stable. l Notes distinguish the L / N / GND line. |
| u Hanging Chain Installation
l Drill corresponding size holes in the ceiling, Put the Expansion bolts into holes. Fixed the hook on the ceiling with nut l As Photo 2 showing , Using the chain’s buckle button up the fixture’s ring. l As photo 3 showing , Hanging the chain’s another-side ring on the hook with carefully l Notes distinguish the L / N / GND line. | u Ceiling Installation
l Drill corresponding size holes in the ceiling, Put the Expansion bolts into holes. Fixed the hook on the ceiling with nut. l Locking up the fixture’s bracket and Wall-mounting bracket with screw. Which in a reasonable beam angle. l Notes distinguish the L / N / GND line |
v Package for UFO LED Higbay Lights
(Note: Portable packaging, easy to carry)
Package size: 32cm*32cm*23cm G.W.:5.3kg; Volum weight: 4.98kg |
Storage Environment: Ambient Operating Temperature range:-20 ℃ --- + 45 ℃ Environment Storage Temperature range:-25 ℃ --- + 65 ℃ Environment Ratings: dry and ventilated moisture-free environment |
v Production & Old-Aging Test of UFO Lights:
 |  |
