Luxsky Lighting Co., Limited is one of the leading manufacturers and suppliers of 5w t5 led tube light in China, featured by quality products and low price. If you're going to wholesale advanced loghting products made in China, welcome to get pricelist from our factory. Customized service and 5 years warranty are available.
Luxsky Lighting Co., Limited is one of the leading manufacturers and suppliers of T5 Integrated LED Tube Lights in China, featuring high-quality products. If you're looking to wholesale advanced lighting products made in China, welcome to get a price list from our factory. Customized service and a 5-year warranty are available.
Features
| Item | Details |
| LED Type | SMD2835 |
| Housing | PC |
| Cover | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K |
| CCT | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K |
| Beam Angle | 120° |
| IP Rating | IP42 |
| Impact Resistance | IK08 |
| Operating Temperature | -15°C to +55°C |
| Connection | Two-end AC input, linkable connection |
| Rated Lifetime | Over 50,000 hours |
| Warranty | 3 years |
Specifications
| Model | Length | Power | Size | Input Voltage | Light Efficiency | CRI | PF |
|---|---|---|---|---|---|---|---|
| LS-11-LLF-T5-03-5W | 300mm | 5W | 300 × 22 × 35mm | AC100-240V | 120 lm/W | Ra>80 | >0.5 |
| LS-11-LLF-T5-06-8W | 600mm | 8W | 600 × 22 × 35mm | AC100-240V | 120 lm/W | Ra>80 | >0.9 |
| LS-11-LLF-T5-09-14W | 900mm | 14W | 900 × 22 × 35mm | AC100-240V | 120 lm/W | Ra>80 | >0.9 |
| LS-11-LLF-T5-12-18W | 1200mm | 18W | 1200 × 22 × 35mm | AC100-240V | 120 lm/W | Ra>80 | >0.9 |

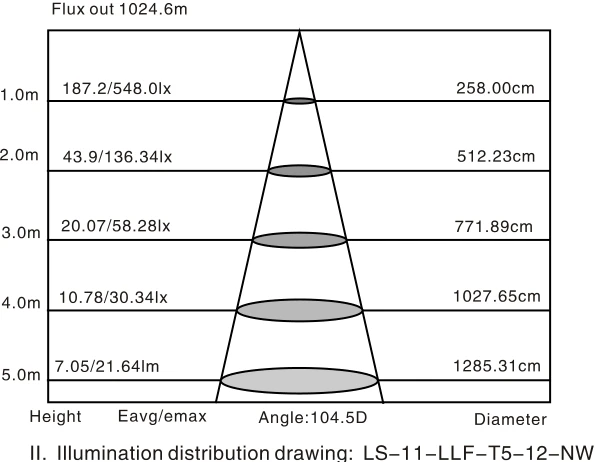

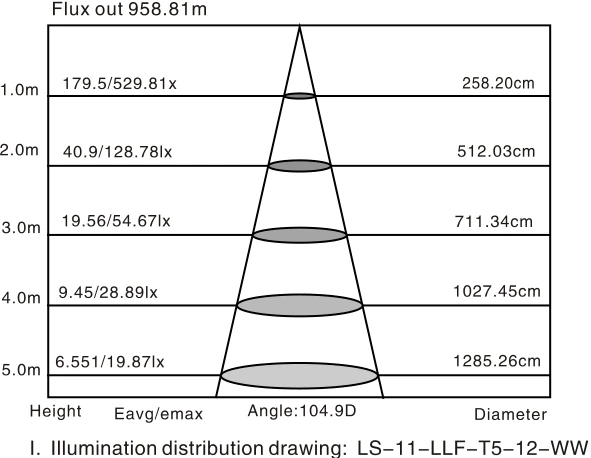

Lux Drawing

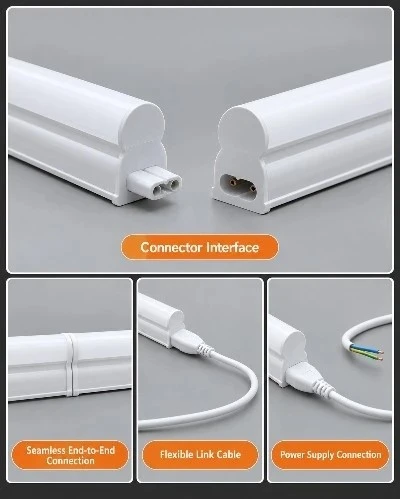

Connector Interface&Packaging

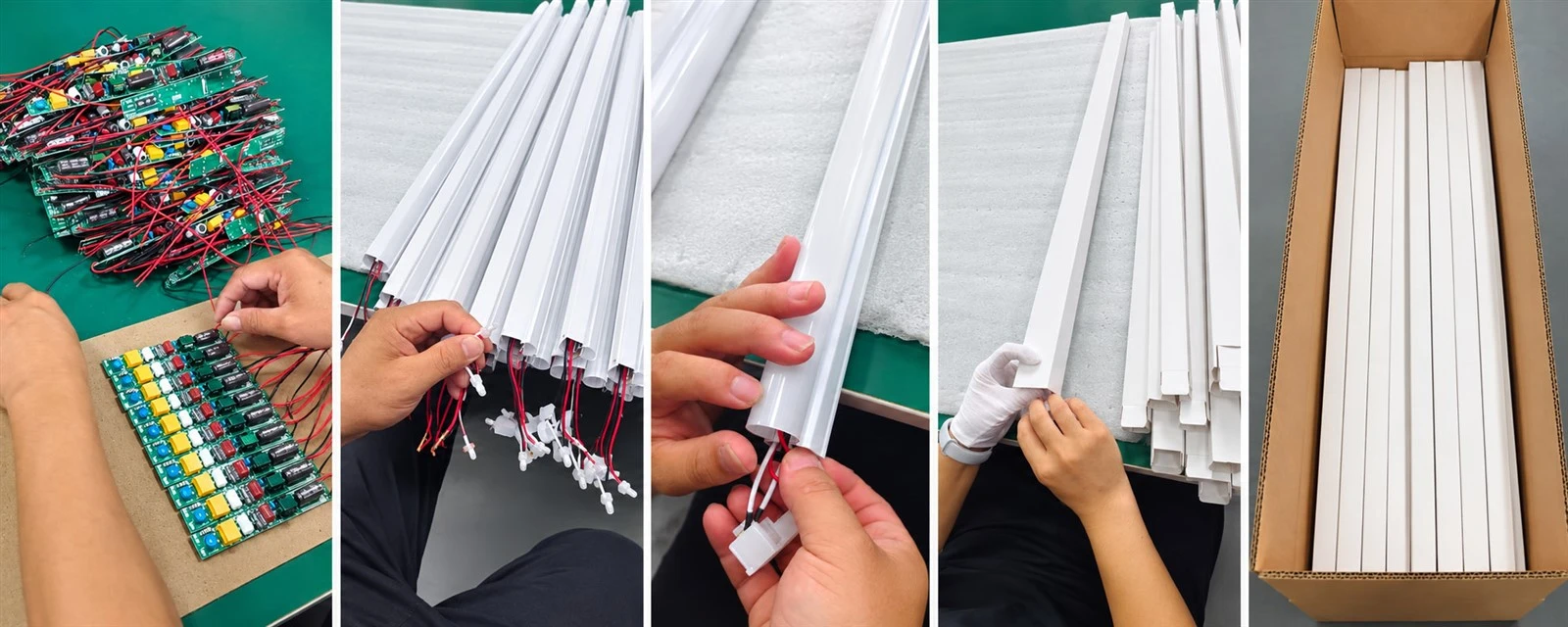

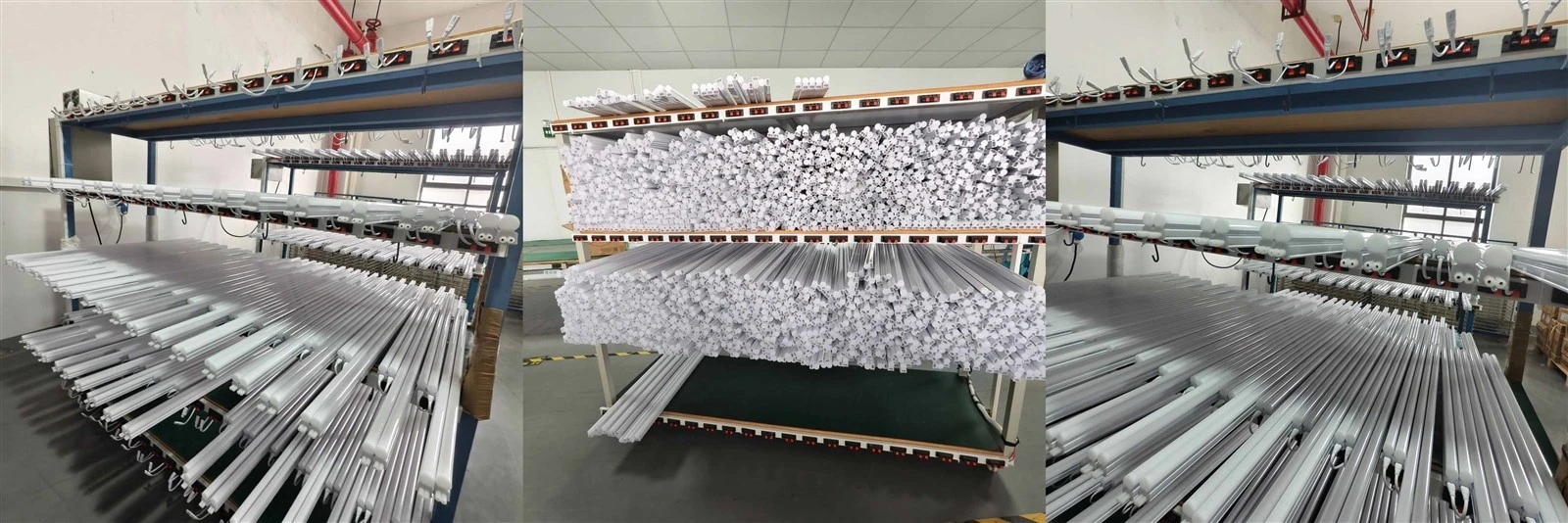

Production Process
FAQ
Q1:Do you have your own factory?
Q1: Yes, we are a professional LED lighting manufacturer with our own factory in Shenzhen, China, producing all products from raw materials to finished goods.
Q2: What certifications and warranty come with it?
A: CE/RoHS certified, IP42 and IK08 rated, with a standard 3-year warranty (up to 5 years for bulk orders).
Q3: Can I order samples first?
A: Yes, sample orders are welcome so you can evaluate quality before placing bulk orders.
Q4: Frosted or transparent cover?
A: Frosted for offices/classrooms; transparent for LED tube lights for display cabinets and supermarket shelves.
Q5: Can they be connected together?
A: Yes, linkable design - perfect for LED tube lights for corridors, warehouse aisles, and retail shelving.
Q6: Is this a retrofit replacement tube?
A: No, it's a complete integrated fixture for new installations, ideal for LED tube lights for schools and hospitals.
