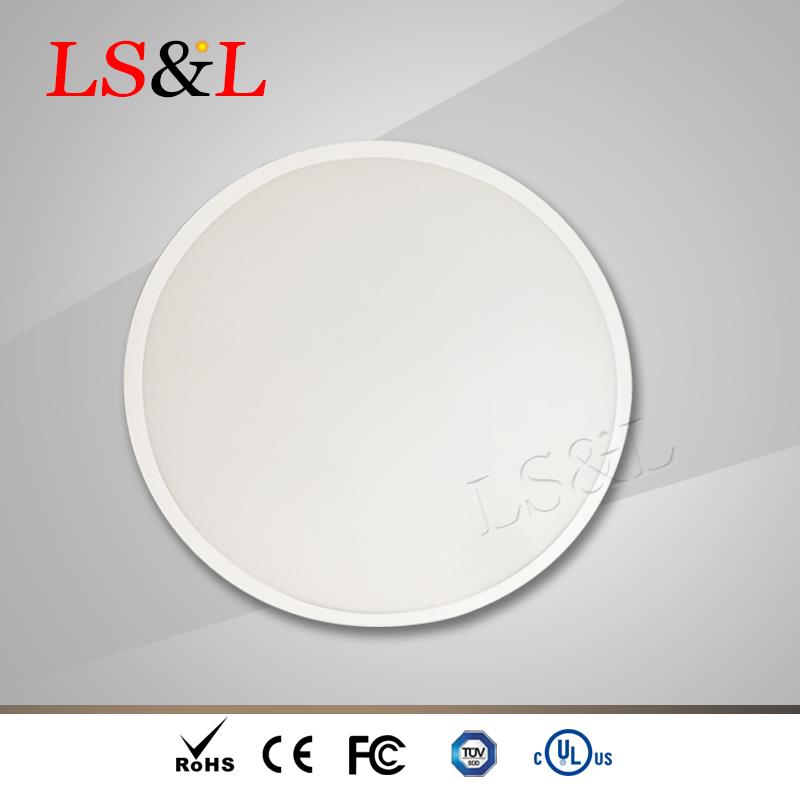

LED Round Panel lights with big sizes are our company's new products, which is different from the wholesales small sizes. and it is a series products with high quality and lighting design, soft and brightness for special lighting projects. sizes from 400mmm to 1000mm; from 30watts to 70watts. 80Ra or 90Ra available; products mainly are fitful the decorative lighting, commercial lighting, public lighting; It is a valuable product which makes your lighting solution better and different from others.
 |
 |
 |
Features of Big LED Panel Lights
Brand: Luxsky Lighting
Part No.: LS-01-R40; R60;R80,R100
Sizes: Φ400mmx12mm;Φ600mmx12mm;Φ800mmx12mm;Φ1000mmx12mm;
Color: 3000K, 4000K, 5000K
CRI: 80Ra@ 100lm-120lm/W; 90Ra @90lm-100lm/W
LED Resource: 2835 Epistar LED
Input Voltage: AC200-240V, 50/60Hz; AC100-277V,50/60Hz;
Power: 30W to 70W, no flickering.
Materials: 6063 Aluminum profile+ laser PMMA Lighting Board/diffuser
IP rate: IP42; IK rate: IP08
Driver: Europen or USA Satndard Driver and brands available.
Installastion: Suspended/ pendant
Warranty: 5 years warranty
Certificates: CE & RoHs, SAA, ETL/UL standard.
Parameters of Big LED Panel Lights
| Pat No. | Size | Color | Power | Lumens | Power Factor | IP Rate |
| LS-01-R40 | Φ400mm | 3000K /4000K/5000K | 25W/30W | 3000lms | >0.95 | IP42 |
| LS-01-R60 | Φ600mm | 3000K /4000K/5000K | 36W/40W | 4000lms | >0.95 | IP42 |
| LS-01-R80 | Φ800mm | 3000K /4000K/5000K | 50W | 5000lms | >0.95 | IP42 |
| LS-01-R100 | Φ1000mm | 3000K /4000K/5000K | 70W | 7000lms | >0.95 | IP42 |
Drawing of Big Round Panel Lights

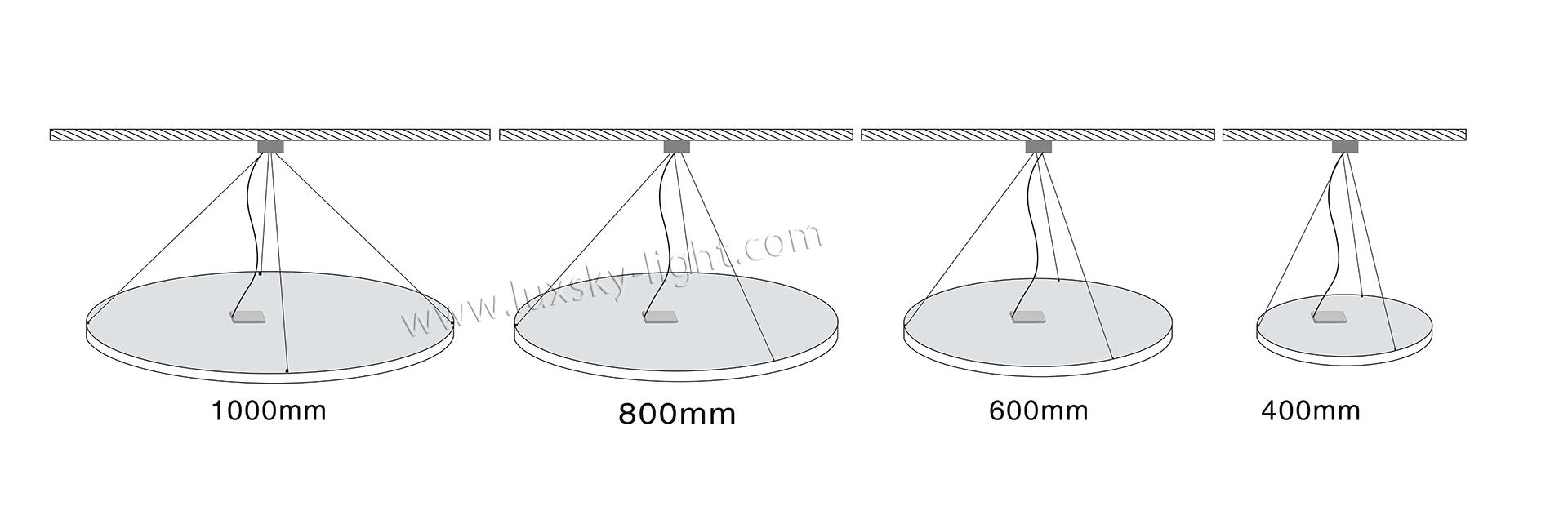

Installation of Big Round LED Panel Lights
Showing of New Big Round Panel Lights Testing
Real Photos of LED Round Panels Production
Application of Large Round pendant Panels
Because of round panel design with soft lighting and big surface lighting, also with high brightness, it is popular with the project clients who love big round sizes very much. They are mostly used in the advanced places and luxurious and grand places: such as high-end shopping malls, Hospitals Halls, General Assembly Halls, Hotel halls,Exhibition halls , etc.
 |
 |
 |
Package of Big Round LED Panel Lights
| Part No. | Size(mm) | Carton Size | Quantity(pc) | N.W.(kg) | G.W.(kg) |
| LS-01-R400 | Φ400mm | 500x500x80mm | 2pc | 5.5kg | 7.5kg |
| LS-01-R600 | Φ600mm | 650x650x80mm | 2pc | 7.0kg | 9.5kg |
| LS-01-R800 | Φ800mm | 950x950x80mm | 1pc | 8.5kg | 10.5kg |
| LS-01-R1000 | Φ1000mm | 1200x1200x80mm | 1pc | 10.5kg | 13.5kg |
Luxsky Lighting 's big round panel lights with specific design and high quality and brightness approval, we welcome all projects clients to purchase from us directly.
