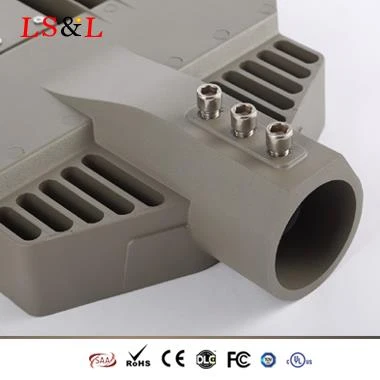

150W outdoor LED Street lights,called LED road lamp or LED outdoor road lights,part No.: LS-13-SL-150W-II, is a module type LED street lights which are designed by our R&D department, high power and high lumens >120lm per watts, with soil gray color for body heat sink, high IP66, IK10, there are three pcs 50W modules to assemble,it can fit for the application of 8-10 meter sreet or road pole to use, such as the places of street lighting roads, city road or streets, city's riverside landscape lighting, and other public luminaire projects.Welcome to enquiry us high quality 5 years guarantee 150W LED road or street lights.
150W waterproof LED Street Lights:
 |  |
Features for 150W LED Street Lights：
Product Name: 150W LED Street Light
Product Brand: Luxsky Lighting
LEDs: LUMILEDs Brand 3030 SMD
Max. Power: 150W
CRI: >80Ra
Beamangle: 80x150°
AC Input Voltage: AC85-277V
Color Temperatuere: Natural White: 4000-4500K; Pure White: 5000-5500K, Cool white 6000-6500K
Driver: high power UL meanwell driver; PF:>0.9
Working Temperature: -30 °to 55 °
Lumen efficacy: >120lm/W
Power efficiency: 92%
Total lumens: >18000lms
6063 high quality Die Casting aluminum housing Shell-150W Street lights
Light body color: soil gray
IK08 & IP66 waterproof
Install Height: 8-10Meters for public lighting projects
Anti-oxidant, anti-corrosion, anti-UV,
Eco-friendly,Energy saving, power saving, high brightness, Low-Carbon,
Original production: Shenzhen of China
CE & RoHs approval, SAA, UL driver
Quality Guarantte: 3 years or 5 years
150W LED Street Light's Parameters:
| Model No. | Size(mm) | Power | Input Voltage | CRI | Color | IP rate |
| LS-13-SL-WW150-II | 602x278x60mm | 150W | AC85-265V | 80Ra | 2800-3200K | IP66 rate |
| LS-13-SL-NW150-II | 602x278x60mm | 150W | AC85-265V | 80Ra | 4000-4500K | IP66 rate |
| LS-13-SL-PW150-II | 602x278x60mm | 150W | AC85-265V | 80Ra | 5000-5500K | IP66 rate |
| LS-13-SL-CW150-II | 602x278x60mm | 150W | AC85-265V | 80Ra | 6000-6500K | IP66 rate |
Waterproof IP66 150W LED Street Light Size Drawing:
150W IP66 Waterproof LED Street Lamp Application:
High Speed road,Countryside street/road, small road lighting, Public lighting, etc.
LED 150W Road/Street Light Installation:
 | Step 1: The arrow indicates the pole by inserting the positioning after the pole plate fixing screw locking. (3PCS) Step 2: The three wire AC power input wires and poles correspond connected. |
150W Street/Road light packaging:
 | Packing size: 620x300x105mm G.W: 7.8kg |
